VORT QBK NURI F400

VORT QBK NURI F400

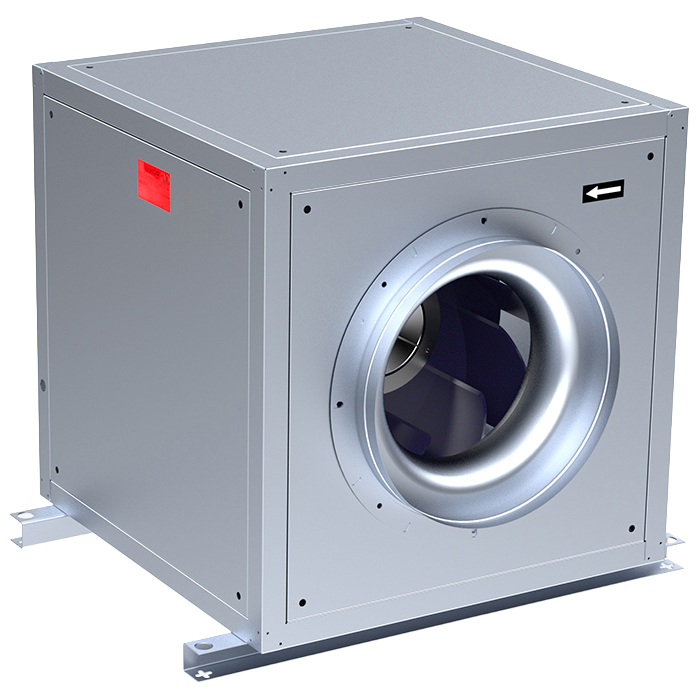

BACKWARD CURVED CENTRIFUGAL FAN IN SOUNDPROOF CABINET 400ºC/2H

MANUFACTURING FEATURES
• Box manufactured in galvanised steel sheet.
• Circular inlet flange.
• Backward impeller with self-cleaning system, direct coupling motor.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class H insulation type 400ºC/2h .
• Manufactured with standard voltages: 400-460V(Y) 60Hz in three phase motors up to 3kW and 400V(D) 60Hz for higher powers and 400V for 2 speed motors.
• Exchangeable pannels
• Open drive.

APPLICATIONS
Designed for inline installation, they are suitable for:
• Air renewal in buildings and industries.
• Maximum working temperature: 60ºC.
• Removing smoke in case of fire. The motor inside the hazardous area (400 ° C / 2 h)


Official homologation by the European laboratory APPLUS according to EN 12101-3:2015
Certification Nr: 0370-CPR-0582

Code Name
VORT QBK NURI 500 T4 3kW
VORT QBK NURI 560 T4 4kW
VORT QBK NURI 710 T6 4kW
VORT QBK NURI 400 T4 1,1kW
VORT QBK NURI 450 T4 2,2kW
VORT QBK NURI 500 T6 1,1kW
VORT QBK NURI 560 T6 1,5kW
VORT QBK NURI 630 T4 7,5kW
VORT QBK NURI 630 T6 2,2kW
VORT QBK NURI 800 T6 7,5kW
VORT QBK NURI 400 T6 0,55kW
VORT QBK NURI 450 T6 0,55kW
VORT QBK NURI 500 T4/T8 3/0,55kW
VORT QBK NURI 560 T4/T8 4/0,75kW
VORT QBK NURI 630 T4/T8 7,5/1,5kW
