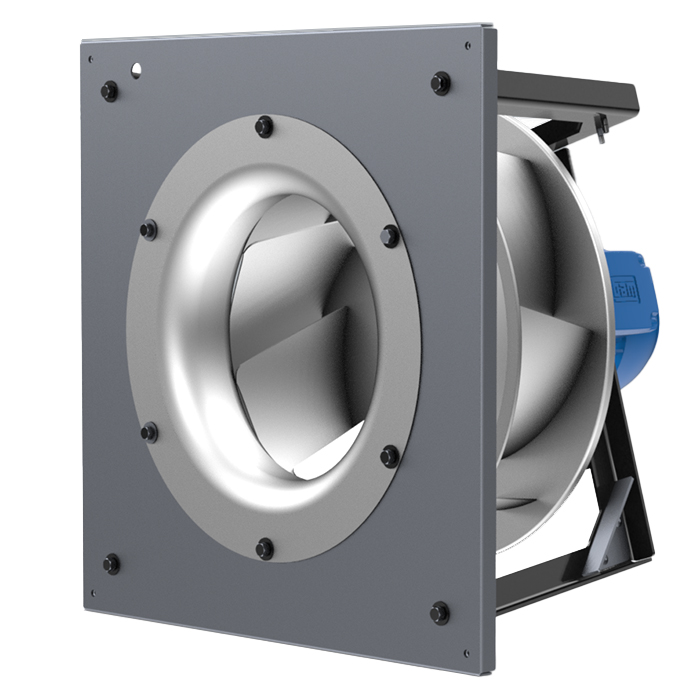

VORTICENT KTL

PLUG FAN WITH IEC MOTOR

Medium size plug fan available from Ø315mm to Ø630mm.

It offers flows up to 10,300CFM and pressures up to 1.100Pa.

MANUFACTURING FEATURES

Latest generation impeller made of galvanized sheet metal with built-in diffuser to increase efficiency. Self-cleaning impeller with backward curved (reaction) blades, high performance and single inlet, direct driven. Dynamically balanced to minimize noise and vibration.

Galvanized sheet metal structure for small sizes up to Ø400mm, and the rest of the models in pickled sheet metal painted with black epoxy polyester.

IEC standard asynchronous squirrel cage motor with IP-55 protection and class F electrical insulation. Standard voltages 230V 60Hz for single phase motors, 230/400-460V 60Hz for three phase motors up to 4kW and 400-460/690V 60Hz for higher powers.

APPLICATIONS

Ideal to integrate in air conditioners, plenums, compressors, dryers, booths, photovoltaic inverters.

Maximum continuous working temperature: 60ºC.

System prepared to comply with future European efficiency regulations (ErP).

UNDER REQUEST

Other possible fabrications up to 100ºC and up to IP66.
