CENTROLINE

CENTROLINE

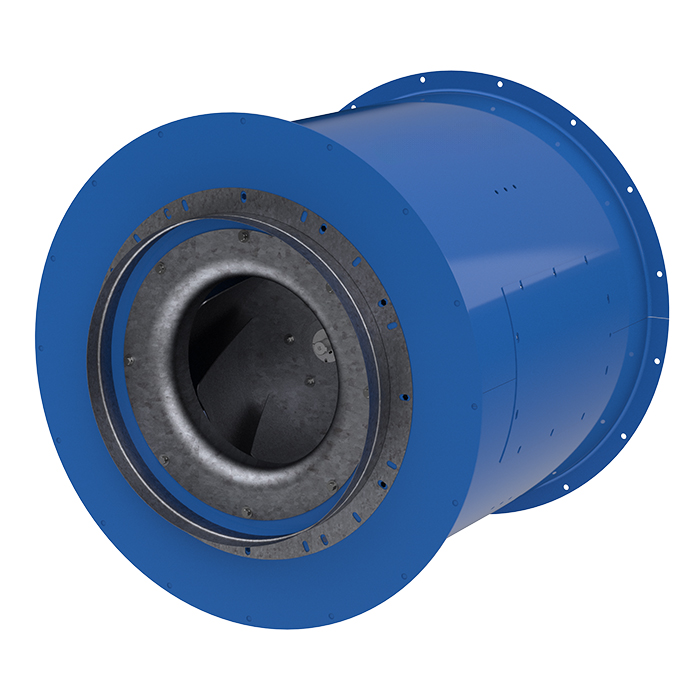

LONG CASE FAN WITH BACKWARD IMPELLER

MANUFACTURING FEATURES:

• Reinforced fan casing manufactured in rolling steel sheet. Polyester powder finishing coat. Housing with motor access door.
• High efficiency backward impeller with self-cleaning system in steel sheet, balanced static and dynamically in origin.High efficiency impeller with built-in diffuser, which eliminates the need to use a scroll or spiral casing to obtain performance.
• Models with AC motor inside the air flow. Standard asynchronous squirrel cage motor with IP-55 protection and Class F insulation. Standard voltages of 230V 60Hz for single phase motors, 230/400-460V 60Hz for three phase motors up to 4kW and 400-460/690V 60Hz for higher powers.

• Maximum working temperature 60ºC.

APPLICATIONS:

Designed for inline installation, they are suitable for:
• Air renewal in buildings and industries.
• Smoke extraction.

Code Name
CENTROLINE 500 T4 3kW
CENTROLINE 630 T6 3kW
CENTROLINE 400 T4 1,1kW
CENTROLINE 450 T4 1,5kW
CENTROLINE 560 T6 1,5kW
CENTROLINE 315 M4 0,25kW
CENTROLINE 315 T4 0,25kW
CENTROLINE 355 M4 0,55kW
CENTROLINE 355 T4 0,55kW
CENTROLINE 500 T6 0,75kW
