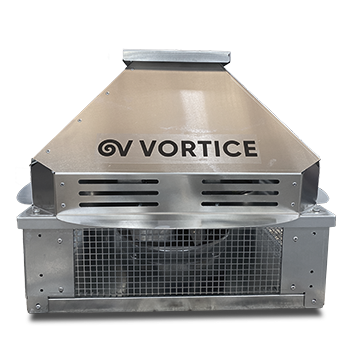

Protection cowl made of anticorrosive treated aluminum easily removable for motor and impeller maintenance (integrated folding system in models 500, 560 and 630).
The design of the cowl with a rounded shape is specific to minimize the risk of water ingress due to rain.
Structure in anticorrosive galvanized steel and support frame for adaptation to the roof with anti-bird protection grid.
High-efficiency backward-curved blade impeller with self-cleaning system. Reinforced polyamide impeller for models 155, 190 and 220. The rest of the models in aluminum.
EC technology uses integral electronic control to ensure that the motor always runs at optimal load and ensures efficient energy utilization. It incorporates an external rotor EC motor with high efficiency (IE4 for three phase motors and IE5 for single motors) and low noise level. Speed control through a 0-10V or PWM signal. 230V 50/60Hz single-phase power supply for models 155 to 310 and 400V 50/60Hz three-phase power supply for sizes 355 and 630. IP44 and motor class B insulation.
APPLICATIONS
Designed for deck or roof mounting, they are indicated for:
Smoke extraction.
Air renewal in all types of buildings and industries.
Working temperature range from -20ºC to 60ºC for models size 155-310, -25ºC to 60ºC for 355-450 sizes, -30ºC to 50ºC for size 500 and -30ºC to 40ºC for 560 and 630 models.
UNDER REQUEST
Fan (size between 250 and 450) with k-factor reading.
50 Hz
