Product out of catalogue
CHEMIROOF ATEX
Model
CHEMIROOF 45 T6 0,37kW ATEX Zone 2: FAN (Ex h IIB T4 Gc) + MOTOR (Ex db IIC T4 Gb)
Code
43281

CHEMIROOF 45 T6 0,37kW ATEX Zone 2: FAN (Ex h IIB T4 Gc) + MOTOR (Ex db IIC T4 Gb)

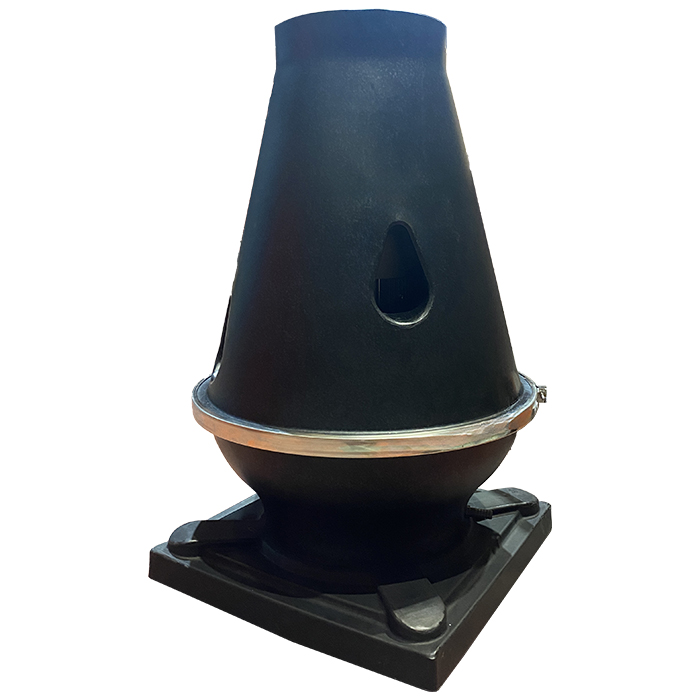

ATEX ROOF FAN WITH BACKWARD IMPELLER AND PLASTIC CONSTRUCTION

MANUFACTURING FEATURES:

• PE-el moulded housing and base (until size 45) and PP-el welded housing and base (for upper models).
• Backward impeller with self-cleaning system in PP welded plastic.
• Stainless steel nuts and bolts.
• Standard asynchronous squirrel-cage motor, IP-55, class F insulation. Standard voltages 230/400V 50Hz for motors until 4kW and 400/690V 50Hz for higher motors. Equipped with ATEX motor.

APPLICATIONS:

Designed for roof installation, they are suitable for:
• Corrosive air transport.
• Chemical and petrochemical industry.
• Laboratories and gas cabinets.
• General ventilation in closed environments classified as ATEX zone 2.
• Maximum temperature of transported air: If it is clean air 70ºC, other depends on the gas (see table in documentation)

UNDER REQUEST:

• Single phase motors (up to 1,1Kw).
• 60Hz fans and special voltages fans.
• 2 speed motors.

Fan

Max flow
3750 m³/h
Weight
40 Kg

Motor

Power
0,37 kW
RPM Motor
900
I max. 230 V
2,2
I max. 400 V
1,27
Size
80
Weight
8.9 Kg
Efficiency
68 %
FP
0.62
CHEMIROOF 45 T6 0,37kW ATEX Zone 2: FAN (Ex h IIB T4 Gc) + MOTOR (Ex db IIC T4 Gb)
Loading...
Design point
Loading...
Service point
Loading...
Alternative point

CHEMIROOF 45 T6 0,37kW ATEX Zone 2: FAN (Ex h IIB T4 Gc) + MOTOR (Ex db IIC T4 Gb)

Dimensions scheme
A B C D E F I L M N Nº O
800 730 280 355 700 50 405 450 750 100 8 700

CHEMIROOF 45 T6 0,37kW ATEX Zone 2: FAN (Ex h IIB T4 Gc) + MOTOR (Ex db IIC T4 Gb)

Electrical scheme

CHEMIROOF 45 T6 0,37kW ATEX

Model
FLC1-F400 35
Code
21989
Information
ANTI-VIBRATING FLANGE 400º/2H

MANUFACTURING FEATURES

• Flexible polyurethane coupling flange with fiberglass fabric to avoid possible vibrations to the installation.
• 160 mm width and supplied with 2 fixing clamps.
• Fire classification: M0.

Model
RPI Ø355
Code
20928
Information
STAINLESS STEEL PROTECTION GRID

Stainless steel protection grid

Model
IREM INVERTER 230 2.5A
Code
12872
Information
FREQUENCY SPEED CONTROLLER

Designed for controlling fan motors speed in HACV applications. Ultra compact installation, simple cabling, easy parameterization and wide standard functions. Integrated control unit panel with digital dial. PID card. Certifications: CE/UL/CSA/EN/GOST/CCC. Protection Marking: IP20.

IREM/IRET INVERTER 230: Entrance 230V I, exit 230V III
IREM/IRET INVERTER 400: Entrance 400V III, exit 400V III

EMC filter incorporated for models from 47A (included)

*Lineal load rated current

**Quadratic load rated current

Model
IRET INVERTER 400 2.2A
Code
12877
Information
FREQUENCY SPEED CONTROLLER

Designed for controlling fan motors speed in HACV applications. Ultra compact installation, simple cabling, easy parameterization and wide standard functions. Integrated control unit panel with digital dial. PID card. Certifications: CE/UL/CSA/EN/GOST/CCC. Protection Marking: IP20.

IREM/IRET INVERTER 230: Entrance 230V I, exit 230V III
IREM/IRET INVERTER 400: Entrance 400V III, exit 400V III

EMC filter incorporated for models from 47A (included)

*Lineal load rated current

**Quadratic load rated current
